Omnisteel 5100 Steel Volleyball System

$2,366.00

-

The 3” Omnisteel telescopic steel volleyball system is a budget friendly competition grade system.  This unit is approved for use for all levels of play.  Indeed, this system meets NCAA requirements for competitive play.

Please choose the color for your pads.

SKU: 5100 Categories: ,

Product Description

The 3” Omnisteel 5100 telescopic steel volleyball system is a budget friendly competition grade system.  This unit is approved for use for all levels of play.  Indeed, this system meets NCAA requirements for competitive play.

What’s Included
This steel volleyball system comes with the winch post, end post, floor sleeves, cover plates, net, pole pads, and antennae.

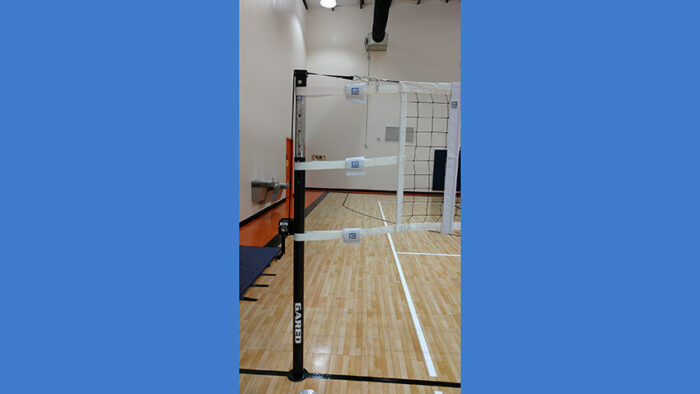

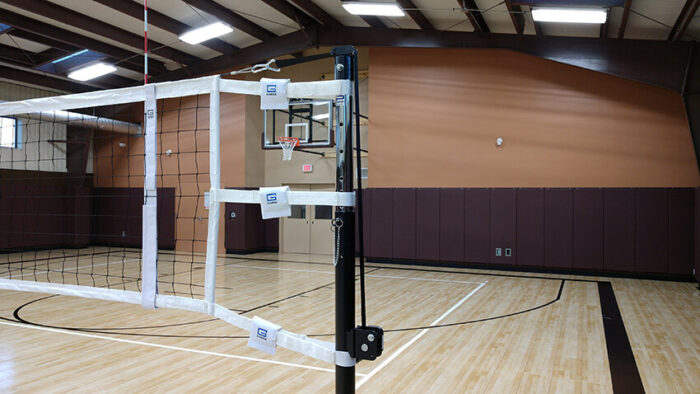

Posts
The bottom of the winch post and end post are powder coated black.  The telescoping upper portion of the posts have a hard chrome finish.  Each post features an adjustable high impact rubber foot.  The adjustable foot protects your gym floor and also provides for precise net height adjustment.

Winch
The heavy duty ratcheting net tensioner features a compression clutch brake that is self locking.  This winch eliminates the need to flip a lever to tighten or loosen the net.  Furthermore, the gears and locking mechanism are housed safely under a steel cover plate to reduce the risk of injury.  A high tensile nylon strap connects the winch to the net’s top cable.

Net
The net that comes with this steel volleyball system is made with 4” square black nylon mesh.  The tensile strength of the mesh is 250 pounds.  The net floats freely along a 1/8” top cable.  This free floating design allows the net to be quickly and easily pulled to center.  The 1/8” cable has a minimum breaking strength of 1,760 pounds.  The net measures 32’ long by 39” tall.  The perimeter has a 2” wide double stitched vinyl coated polyester hem with 1” diameter wood dowels at each end.  Nylon straps with steel buckles and hook & loop fasteners secure the net in place between the posts.  This net meets or exceeds all requirements for most levels of competition.

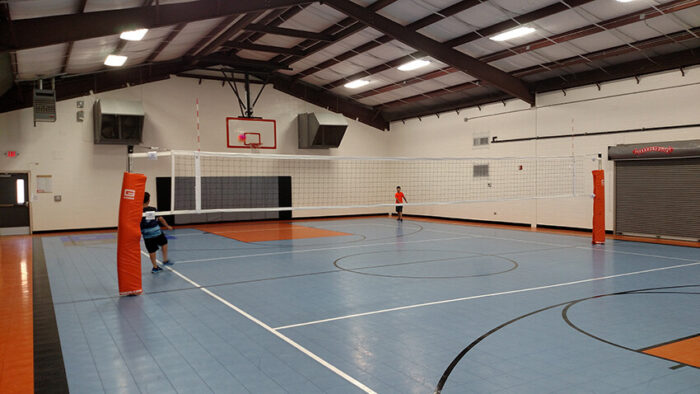

Pads
The Omnisteel volleyball system comes with upright safety pads for the posts.  The pads are made from 1-1/2” thick cross-linked polyethylene closed cell foam wrapped in nylon reinforced 14oz vinyl.  The pads are available in 14 standard colors.  The pads fold around the posts and are secured with hook & loop fasteners.  The colors are: marine blue, royal blue, navy blue, yellow, orange, red, maroon, white, grey, black, beige, kelly green, forest green, and purple.

Antenna
The antennas are made from 38” x 6’ fiberglass rods with red and white alternating stripes.  The antenna sit in nylon reinforced vinyl pockets which adhere to the net with a hook & loop fastening system.

Warranty
Gared Sports offers a 10 year warranty on the uprights and 3 years on the winch, sleeves, and cover plates.

Shipping
This steel volleyball system is shipped on a 4’ x 8’ pallet.  The total shipping weight is roughly 250 pounds, including pallet and packaging.  We ship within the continental United States.  If you would like this volleyball system or other gym equipment shipped elsewhere, please contact us so that we may provide a custom shipping quote.

If you have questions about any of our projects, Sport Court® gym flooring, or any of the products we sell, please contact us right away.

Additional Information

Weight 250 lbs
Dimensions 96 × 48 × 24 in

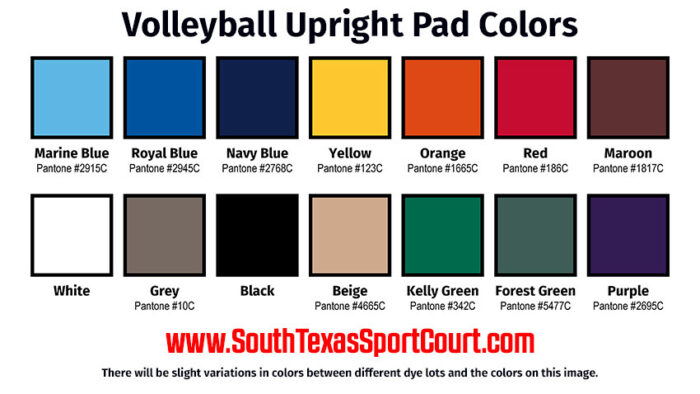

Volleyball Pad Color

Beige 4665, Black, Forest Green 5477, Grey 10, Kelly Green 342, Marine Blue 2915, Maroon 1817, Navy Blue 2768, Orange 1665, Purple 2695, Red 186, Royal Blue 2945, White, Yellow 123

Click Here to View or Download the Warranty
Click Here to View or Download the Specifications
Click Here to View or Download the Instructions

Lead Time
Most order ship in 2 to 4 business days.

Size and Weight
This steel volleyball system is shipped on a 4’ x 8’ pallet.  The total shipping weight is roughly 250 pounds, including pallet and packaging.  Additional units will add approximately 200 pounds.

Shipping Location
Our flat fee shipping rate is for shipping within the continental United States.  If you would like this volleyball system or any other gym equipment shipped elsewhere, please contact us so that we may provide a custom shipping quote.

Delivery
We will request that your order be delivered on a truck equipped with a lift gate. However, freight companies are known to disregard these instructions. If the driver shows up without a lift gate, and the order cannot be unloaded, please contact us immediately so that we can verify that a left gate was on the freight order.

The driver may need assistance unloading your freight. The friendlier or more helpful you are or the promise of a tip, will go along way when working with drivers. A average tip for this type of delivery is $10 to $20.

Drivers are not required to delivery pallets to an indoor space. There is an extra fee for indoor delivery. Again, if you’re friendly and helpful or offer a tip, most drivers will provide additional assistance.

Damage
Please list all noticeable damage on the delivery ticket before signing. Also, please take photos of damage immediately. Email us the photos so that we can work with the shipper to rectify any problems.
