Product Description
The Hoopmaster Portable Basketball Goal 9172 is ideal for facilities that need a portable entry level basketball goal. The Hoopmaster features a 72” x 42” tempered glass backboard, double spring collegiate rim, and pads. Model 9172 has a safe play distance of 5’ between the backboard and the base of the backstop. The Hoopmaster 9172 is considered lightweight at just 1,555 pounds. It’s equipped with 4 polyurethane non-marking wheels and a 600 pound ballast with optional floor anchoring system.
Strong Steel Construction
The frame of the Hoopmaster Portable Basketball Goal 9172 is constructed of welded heavy wall steel tubing throughout. All steel components are powder coated and designed for indoor use and indoor storage. Galvanized framing is available if the goal is going to be stored outdoors or subject to wet weather. Units with galvanized framing are custom quoted upon request.
Full Size Glass Backboard
All goals in the Hoopmaster 9400 series comes with a BB72G50 72”x42” tempered glass backboard with powder coated steel frame. The glass is 1/2” thick with white target lines permanently fused to the glass.
Backboard Pads
The PMCE Pro-Mold Backboard Pads are available in 16 standard colors. These pads are formed with a durable outer urethane skin and feature a 10 year limited warranty.
Collegiate Breakaway Rim
The 2000+ breakaway rim has been installed in more facilities than any other rim in history. Indeed, this rim meets or exceeds design requirements of NCAA and AAU as well as other basketball organizations. The 2000+ rim is set at the factory to break or flex at 140 pounds of dynamic energy force. This may be increased or decreased by the installer by adjusting the compression on the springs.
Rim Height

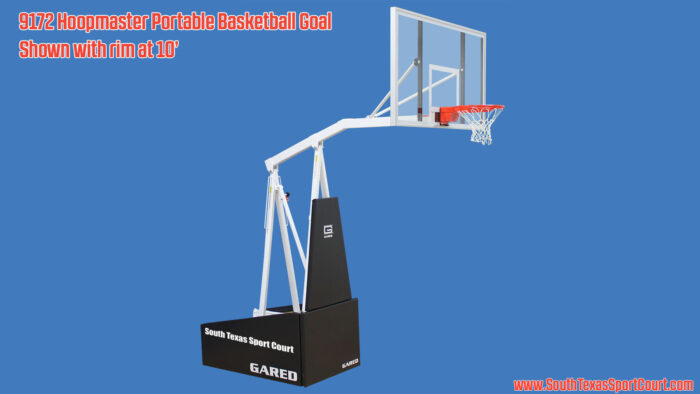

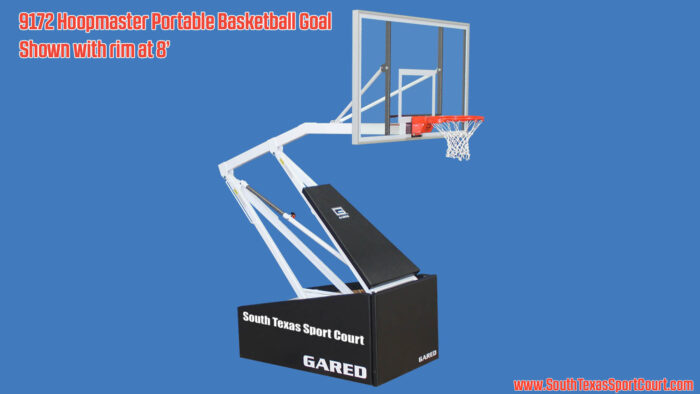

The Hoopmaster 9172 portable basketball goal offers rim heights of 8’, 9’, and 10’. Lowering the rim to 8’ or 9’ will move the backboard closer to the backstop frame and reduce the overall safe play space.
Non-Marking Wheels
The Hoopmaster Portable Basketball Goal 9172 comes with two 5” diameter wheels and two 5” diameter swivel casters. The wheels feature steel ball bearings with grease fitting for internal lubrication. The wheels are steel with non-marking polyurethane tread.
Padding
All models of Hoopmaster goals includes padding on the front and sides of the portable base. Pads are constructed of 2” foam encased in 14oz vinyl, similar to gymnasium wall pads. The pads are available in 14 standard colors. Logos, lettering, or artwork are printed on the padding for an additional feel.

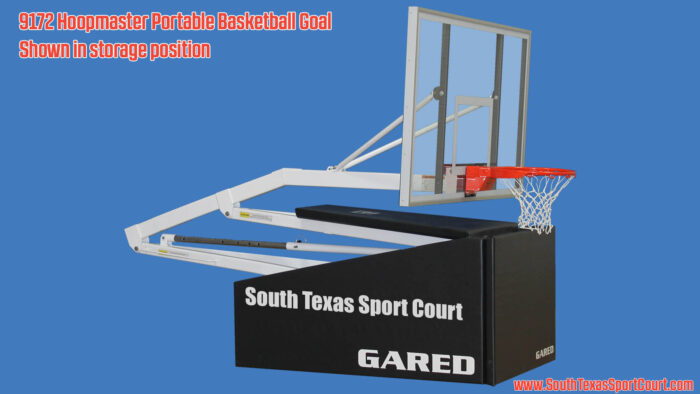

Easy Folding Mechanics
Two tension springs easily lift the Hoopmaster Portable Basketball Goal 9172 into playing position. This can be done by a single person. Once the unit is raised, it is locked into position with a locking pin to prevent collapse or movement.
Ballast
The Hoopmaster 9172 has a 600 pound ballast permanently welded into the of the unit. This prevents the ballast from accidentally being removing and causing unintended tip over.
Optional Anchor and Alignment Pins
Gared Sports offers an anchoring kit with alignment pins which can be added to the 9172. Anchoring the goal to the floor provides an added level of stability and safety. The anchor bracket is attached at the rear of the unit. The anchors are sold separately based on the type of flooring. Alignment pins are located at the front of the base and these help align the goal before raising it into the playing position.
Hoopmaster Portable Basketball Goal 9172 Instructions
Please refer to the instructions before ordering or setting up the Hoopmaster Portable Basketball Goal 9172. This document as well as specifications and warranty are also located in the product tabs near the top of this description.
Warranty
Gared Sports offers a 10 year limited warranty on the Hoopmaster Portable Basketball Goal 9172.
Gym Floor Weight Loading
All gym floors are susceptible to weight load and rolling load damage. Portable basketball goals may exceed the load rating of you gym floor. Always check with your floor’s manufacturer to determine weight load design of your floor.
Portable basketball goals are ideal for facilities where the goal can roll around and rest on bare concrete or on protective plywood sheeting.
Shipping
The Hoopmaster 9172 ships on 2 oversized pallets and has a shipping weight of around 1,555 pounds.
We ship within the continental United States. If you would like this backboard or other gym equipment shipped elsewhere, please contact us so that we may provide a custom shipping quote.
If you have questions about any of our projects, Sport Court® gym flooring, or any of the products we sell, please contact us right away.
