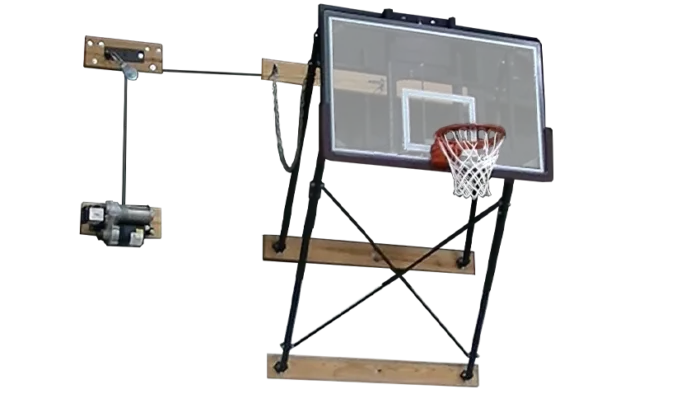

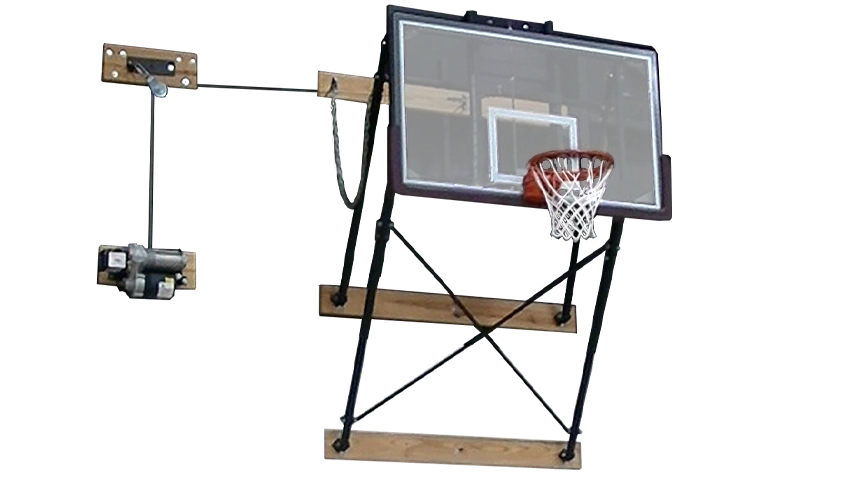

The Fold Up Wall Mount Basketball Goal is ideal for any gym in which the goal will be within 12’ from the wall. This unit is approved for use for all levels of play. Indeed, this system meets NBA, NCAA, FIBA, NFHS, & IBL requirements for competitive play.
The Face of Bank for this system is anywhere from 4’ to 12’ from the wall. (The Face of Bank is the distance between the wall and the front face of the backboard.) If a height adjuster is added, the Face of Bank increases by roughly 10″.
This fold up wall mount basketball goal includes a 72”x42” glass backboard, collegiate rim, backboard pads, and backstop. A height adjuster is also provided as an optional add-on.
Glass Backboard with Aluminum Frame
The AFRG42 is the strongest aluminum framed glass backboard available anywhere. It is designed to withstand 900 pounds of force. This versatile backboard is designed to attach to wall mount backstops, ceiling suspended backstops, and portable arena goals like those used on NBA courts.
Glass Backboard with Steel Frame
The LXP4200 glass backboard from Gared Sports is the strongest backboard manufactured today. This backboard can withstand 1,100 pounds of force. This backboard is able to attach to wall mount backstops, ceiling suspended backstops, and portable arena goals like those used on NBA courts.
Electric Hoist with Key Switch
The fold up wall mount basketball goal comes with a 3/4 horsepower electric winch and key switch for easy raising and lowering of the goal. The switch fits into a standard electrical junction box ordinarily used for light switches and outlets. All electrical connections should be made by a qualified electrician.
Collegiate Breakaway Rim
The 2000+ breakaway rim has been installed in more facilities than any other rim in history. Indeed, this rim meets or exceeds design requirements of NCAA and AAU as well as other basketball organizations. The 2000+ rim is set at the factory to break or flex at 140 pounds of dynamic energy force. This may be increased or decreased by the installer by adjusting the compression on the springs.
The PMCE Pro-Mold Backboard Pads are available in 16 standard colors. These pads are formed with bolt holes to fit both the LXP4200 and AFRG42 glass backboards.
The backstop is the framework that connects the backboard to the wall. Or, in the case of a ceiling mount, the backstop connects the backboard to the ceiling. The backstop for this fold up wall mount basketball goal is available in 3 telescoping sizes. Each size allows the backboard to be set at different distances from the wall. This offset from the wall is known as the Face of Bank.
Gared Sports offers black and 7 other standard powder coating colors. Custom colors are available for an additional fee. The default color is black. Backstops which are powder coated black are usually available to ship within a few days of placing the order. If a color other than black is specified, shipping may be delayed 1 to 2 weeks.
Optional Height Adjuster
The optional height adjuster allows users to lower the rim down to 8’. The height adjuster is either operated by an electric motor or manually with a shepherd’s hook. The height adjuster adds approximately 10” between the backstop and the backboard. Therefore, when incorporating a height adjuster, be sure to add this extra 10” to the length of your backstop. For instance, if your Face of Bank is 6’-5” and you plan to have a height adjuster, then your backstop should be the 4’ to 6’ option since the thickness of the height adjuster will add about 10”.
The height adjuster is only available in black.
This backboard is a heavy duty commercial unit. It should only be installed by individuals with experience installing this type of equipment. Installation generally requires 2 strong men and the use of a scissor lift. Although, it may also be installed with scaffolding. South Texas Sport Court Flooring and Gared Sports accept no liability for injury, damage to property, or loss of life as the result of untrained, inexperienced, or unskilled individuals installing this equipment or for equipment that is installed improperly.
To see the complete installation of a wall mount basketball goal, please visit our YouTube channel.
Gared Sports offers a lifetime warranty on the glass backboard, 4 year warranty on the rim, 10 year warranty on the pads, 5 year warranty on the backstop, 5 year warranty on the electric hoist, and 1 year warranty on the optional height adjuster.
The fold up wall mount basketball goal is shipped on either a 4’ x 6’ or 4’ x 8’ pallet. The total shipping weight is a minimum of 400 pounds, including pallet and packaging.
We ship within the continental United States. If you would like this basketball goal or other gym equipment shipped elsewhere, please contact us so that we may provide a custom shipping quote.
If you have questions about any of our projects, Sport Court® gym flooring, or any of the products we sell, please contact us right away.
